DENALI | DENALI DL6 LED Driving Lights with DataDim

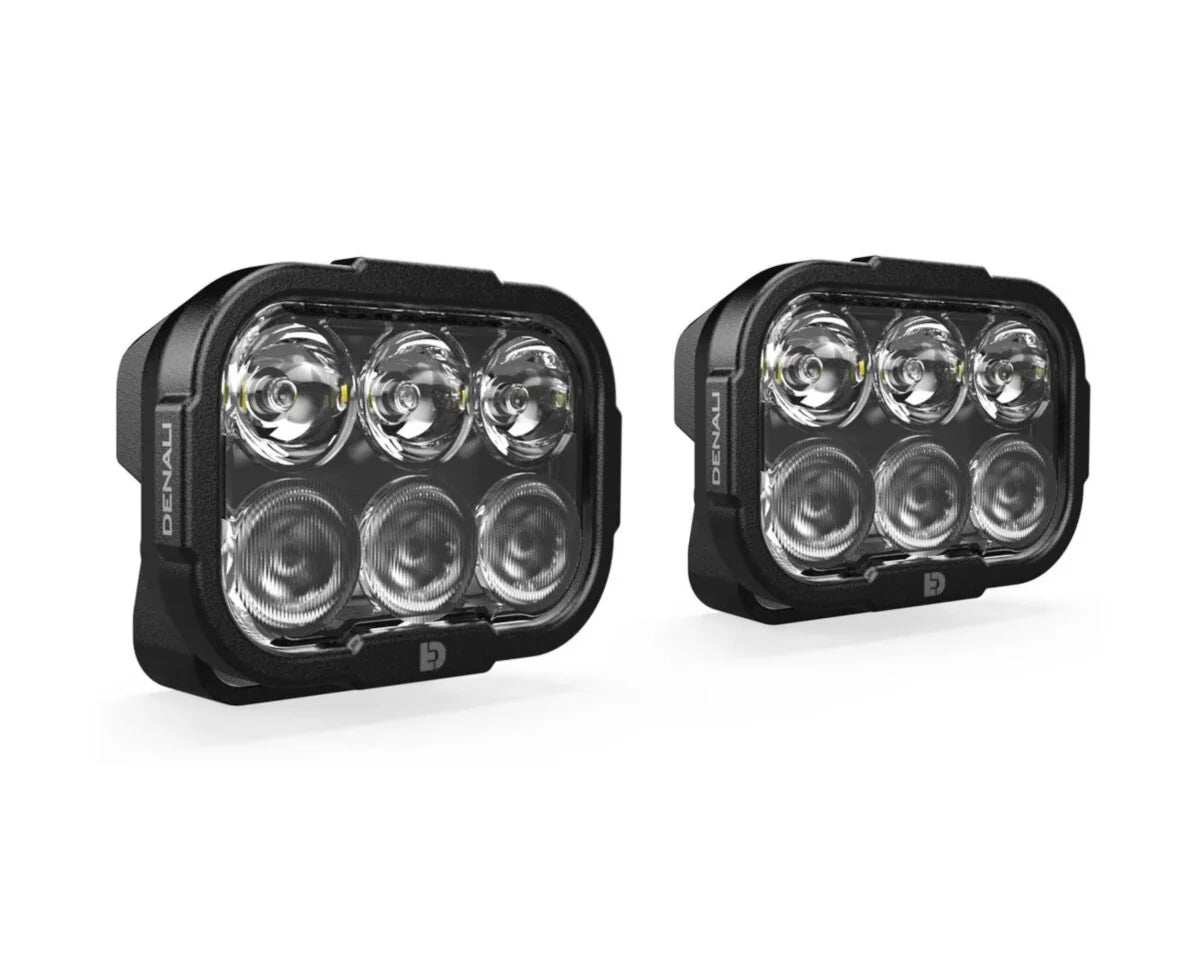

DENALI DL6 LED Driving Lights with DataDim Technology (Pair)

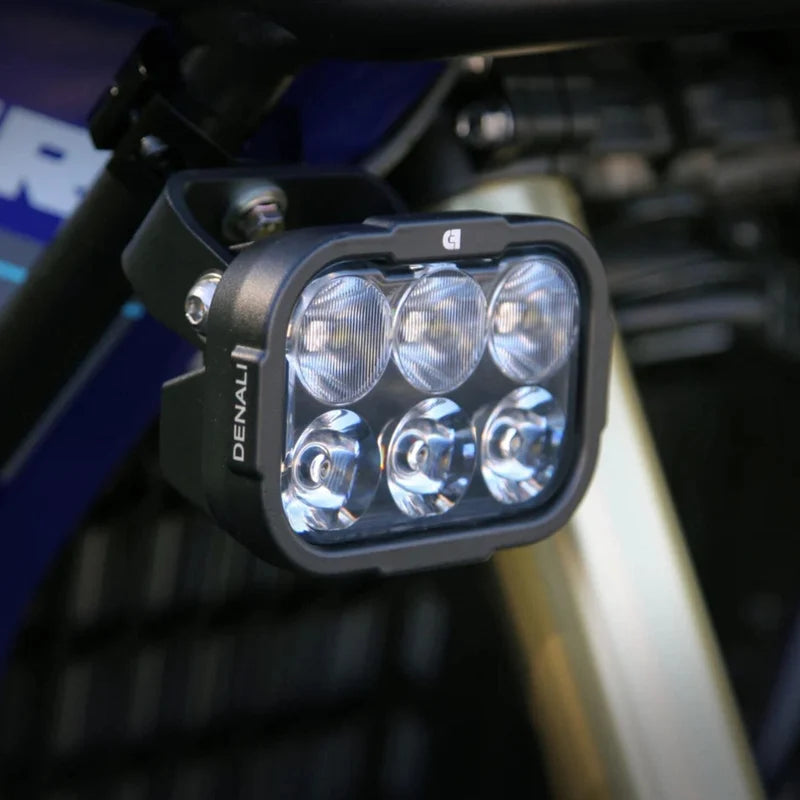

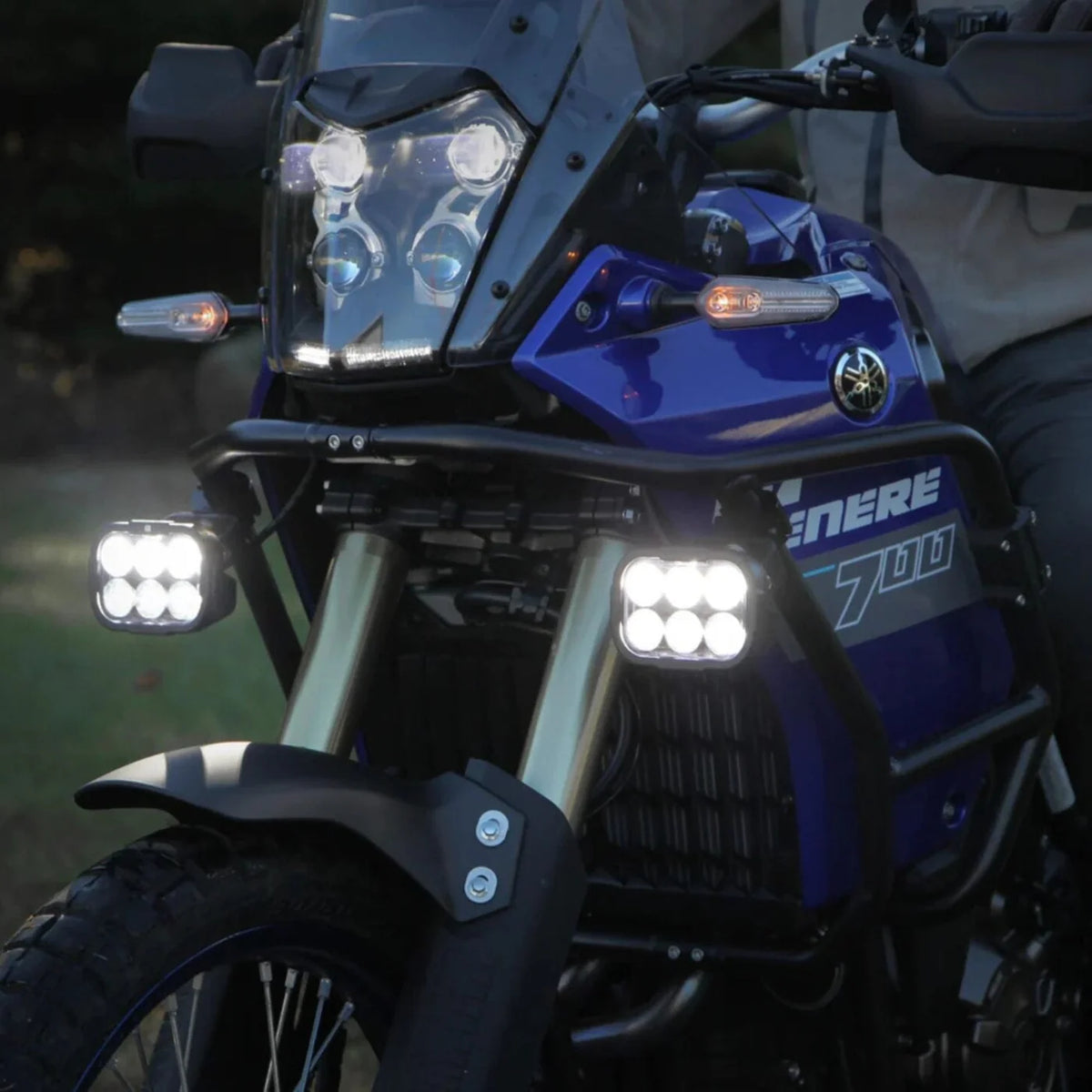

The DENALI DL6 LED Driving Lights deliver powerful illumination, advanced dimming functionality, and exceptional durability in a slim, rectangular housing. Designed for medium to large motorcycles and adventure bikes, these auxiliary driving lights combine high-output CREE LEDs with advanced TIR optics to produce a powerful hybrid driving beam with excellent distance and width.

Delivering 10,200 raw lumens per pair, the DL6 is an ideal choice for riders seeking enhanced visibility on highways, touring routes, and off-road adventures. Its low-profile rectangular design allows for discreet mounting while providing impressive lighting performance.

Key Features

• High-Output LED Performance: Premium CREE XPL HI LEDs deliver 10,200 raw lumens per pair.

• Hybrid Driving Beam: Advanced TIR optics provide an effective combination of long-distance illumination and wide beam coverage.

• DataDim Technology: Three-wire dimming system enables plug-and-play integration with compatible DENALI lighting harnesses, DialDim controllers, and CANsmart controllers.

• DrySeal Waterproof Construction: Robotically sealed lenses and internally protected cable entries provide waterproof, submersible performance.

• Durable Construction: 4 mm thick powder-coated steel mounting brackets, a robust heatsink, and UV-resistant polycarbonate lenses are built for demanding riding conditions.

• Low-Profile Rectangular Design: Compact rectangular housing ideal for primary auxiliary driving lights on medium to large motorcycles.

• ECE-Compliant Driving Beam: Certified to ECE R149 for use as a primary or auxiliary high beam where applicable.

• Multiple Beam Options: Available in white, amber, and selective yellow options.

• Wide Compatibility: Designed to work with compatible DENALI lighting harnesses and controllers.

Technical Specifications

• Brand: DENALI

• Model: DL6

• Quantity: Pair (2 lights)

• LED Type: CREE XPL HI, 8W each

• Power Consumption: 48W per light / 96W per pair

• Current Draw: 4A per light / 8A per pair

• Raw Light Output: 5,100 lumens per light / 10,200 lumens per pair

• Beam Distance: Up to 1,000 ft (305 m) per light / 1,330 ft (406 m) per pair

• Beam Width: 203 ft (62 m) per light / 270 ft (82 m) per pair

• Color Temperature: 6000K

• Operating Voltage: 9–32V DC

• Connector: DataDim-compatible 3-wire Deutsch DT

• Dimensions: 3 × 4.5 × 2 inches per light

• Weight: 1.5 lbs per light / 3 lbs per pair

• Waterproof Rating: IP68 and IP69K

• Beam Certification: ECE R149 Driving Beam

• EMC Compliance: R10, CISPR 25, CE, and UKCA
