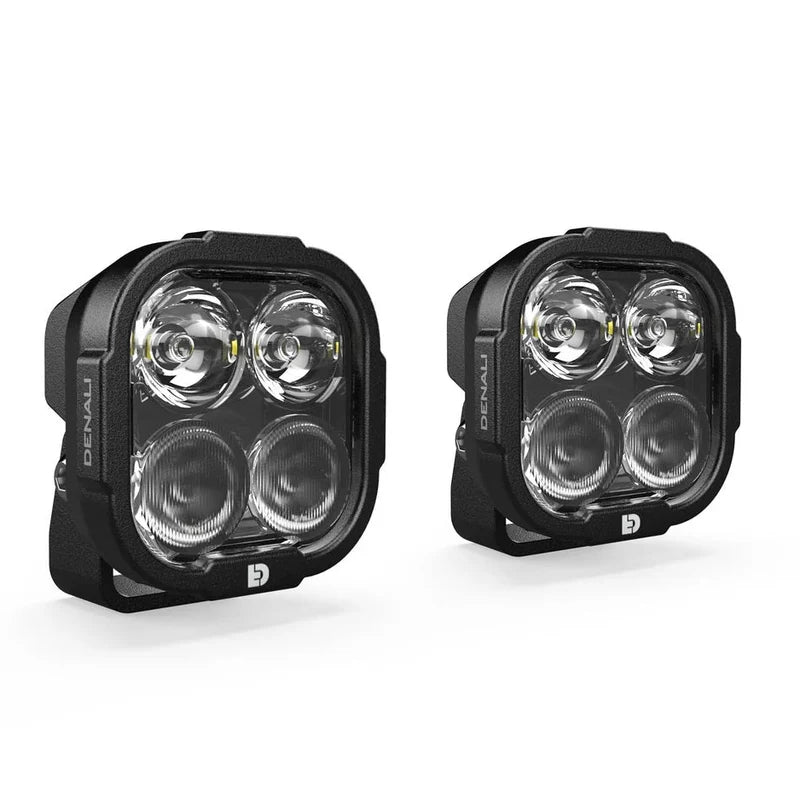

DENALI | DENALI DL4 LED Driving Lights with DataDim (Pair)

DENALI DL4 LED Driving Lights with DataDim Technology (Pair)

The DENALI DL4 LED Driving Lights deliver powerful illumination, exceptional durability, and advanced dimming technology in a compact design. Engineered for motorcycles and adventure bikes, these auxiliary driving lights feature high-output CREE LEDs and advanced TIR optics to provide an efficient hybrid driving beam with an excellent combination of distance and width.

With 6,800 raw lumens per pair, the DL4 is an ideal choice for primary auxiliary driving lights on small to medium-sized motorcycles. Their compact, lightweight construction also makes them suitable for lower-fender mounting applications on larger adventure motorcycles.

Key Features

• High-Output LED Performance: Premium CREE XPL HI LEDs deliver 6,800 raw lumens per pair.

• Hybrid Driving Beam: Advanced TIR optics provide an effective combination of long-distance illumination and wide beam coverage.

• DataDim Technology: Three-wire dimming design enables plug-and-play integration with compatible DENALI lighting harnesses, DialDim controllers, and CANsmart controllers.

• DrySeal Waterproof Construction: Robotically sealed lens and internally protected cable entry provide waterproof, submersible performance.

• Durable Housing: Powder-coated steel mounting brackets, a robust heatsink, and UV-resistant polycarbonate lenses are designed for demanding riding conditions.

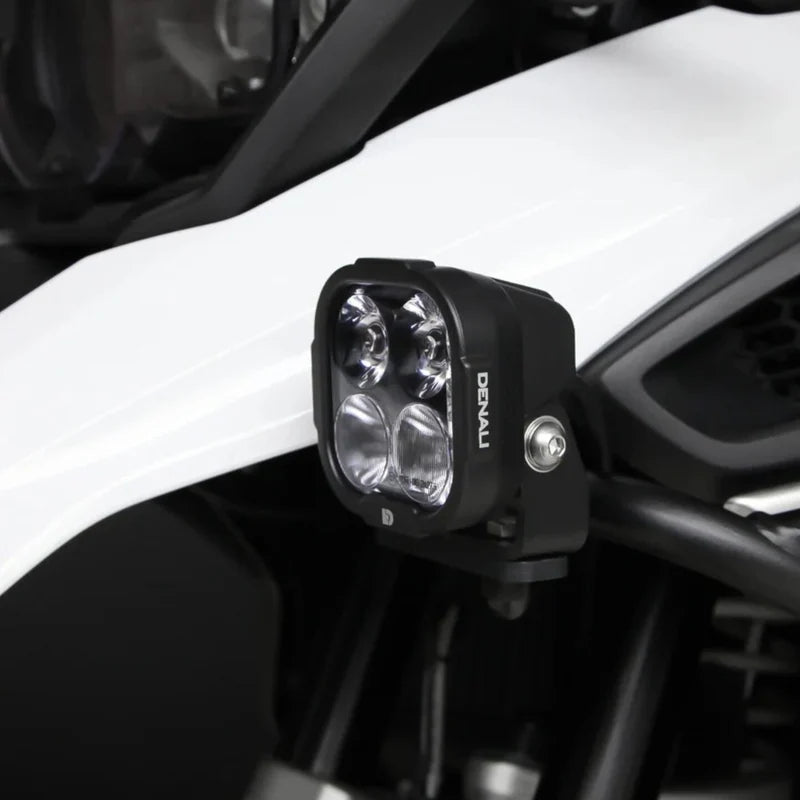

• Compact Design: Square light pods suitable for a variety of motorcycle mounting positions.

• ECE-Compliant Driving Beam: Certified to ECE R149 for use as a primary or auxiliary high beam where applicable.

• Multiple Beam Options: Available in white, amber, and selective yellow options.

• Harness Compatibility: Designed to work with compatible DENALI lighting harnesses and controllers.

Technical Specifications

• Brand: DENALI

• Model: DL4

• Quantity: Pair (2 lights)

• LED Type: CREE XPL HI, 8W each

• Power Consumption: 32W per light / 64W per pair

• Current Draw: 2.7A per light / 5.4A per pair

• Raw Light Output: 3,400 lumens per light / 6,800 lumens per pair

• Beam Distance: Up to 820 ft (250 m) per light / 1,091 ft (333 m) per pair

• Beam Width: 157 ft (48 m) per light / 209 ft (64 m) per pair

• Color Temperature: 6000K

• Operating Voltage: 9–32V DC

• Connector: DataDim-compatible 3-wire Deutsch DT

• Dimensions: 3 × 3 × 2 inches per light

• Weight: 1.2 lbs per light / 2.4 lbs per pair

• Waterproof Rating: IP68 and IP69K

• Beam Certification: ECE R149 Driving Beam

• EMC Compliance: R10, CISPR 25, CE, and UKCA

Compatible Wiring and Lighting Controls

Choose a compatible wiring and switching option to complete your DENALI DL4 lighting setup:

• Standard Powersports Harness

• Standard Automotive Harness

• Premium Powersports Harness

• DENALI DataDim Module

• DENALI DialDim Lighting Controller
